Describes an issue in which the VMBus device does not load on a virtual Interrupt Controller (APIC) HAL to load the VMBus device correctly. For more information about Hyper-V technology, visit the following Microsoft Web site: Microsoft Visual Studio · Windows Dev Center · Developer Network. Build: Windows Server R2 (fully updated), with a Hyper-V Role .. I am talking about seeing the "VMBus Network Adapter" in Hyper-V as. Hyper-V integration components update for Windows virtual You disable the physical adapter on the Hyper-V guest while network I/O is.
|File Size:||9.73 MB|
|Operating Systems:||Windows NT/2000/XP/2003//7/8/10 or MacOS 10/X|
|Price:||Free* [*Regsitration Required!]|

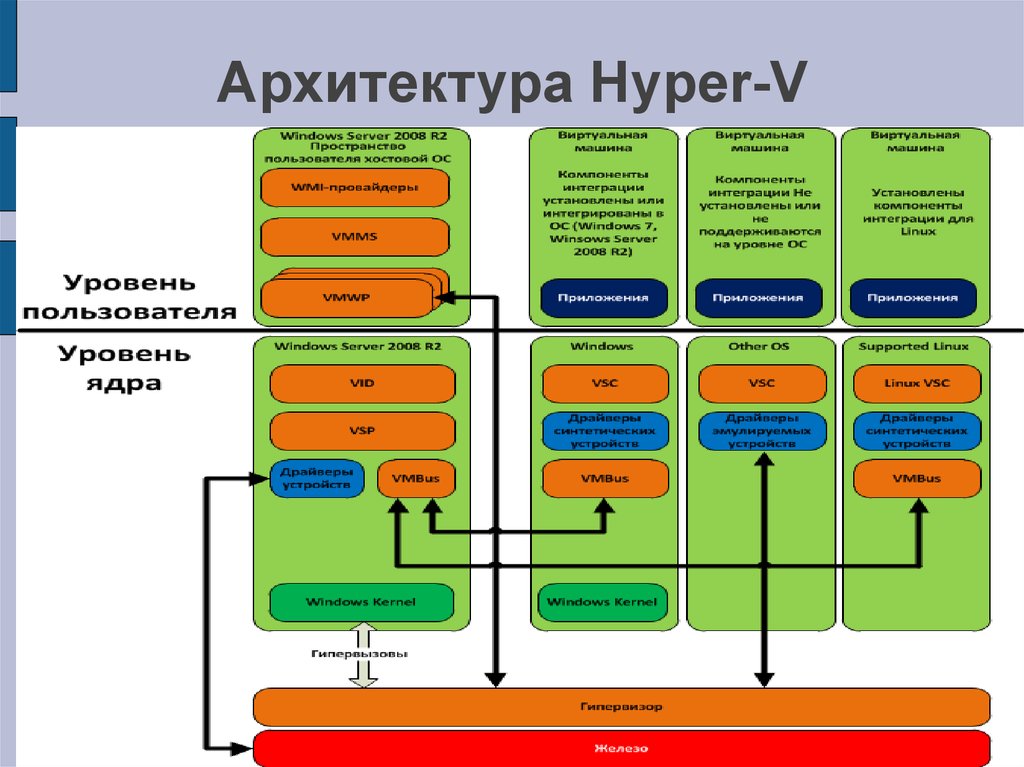

The virtual machine (VM) network adapter is exposed in the guest Note In Hyper-V, a child partition is also known as a VM. NetVSC forwards packets to and from the extensible switch port over the VM bus (VMBus). With that said, open the Hyper-V Manager by selecting the Hyper-V Manager process is to install a device driver for the virtual machine's network card. Figure B Virtual servers use the Microsoft VMBus Network Adapter. Microsoft Hyper-V, codenamed Viridian and formerly known as Windows Server Virtualization, . Any request to the virtual devices is redirected via the VMBus to the devices in . In July , Microsoft submitted Hyper-V drivers to the kernel, which at the same time adding the new guest video and network card drivers.
This topic covers some common issues you may encounter when using Hyper-V. The VMBus is a logical channel which enables inter-partition communication. After you install the integration services, Device Manager will recognize the devices that are available for that guest operating system. Ubuntu I'd say it would be safe to assume that the documentation was written using either a Hyper-V beta release or an internal MS version never made public.
The next section of the dialog page is a boot priority list, same as on the Generation 1 and works the same way. The only real difference is the addition of the details display at the bottom that provides additional information about the highlighted boot item. The Memory tab controls the way that physical memory is allocated to the virtual machine.
Remember that memory is not a shared resource in the way that CPU is, so memory dedicated to a specific guest is unusable for any other purpose while that guest is turned on. The first option is Startup Memory.
Aidan Finn, IT Pro
This is one of the more important settings on the page. For guests that do not — or cannot — use Dynamic Memory, this number represents the entire amount of memory that the guest will have available.
For guests that can use Dynamic Memory, this establishes how much they will have before their operating system loads and the Dynamic Memory driver takes control over memory allocation.
The guest operating system will always believe that it has at least this much memory, and will use it for calculating any initial values that depend on the total quantity of memory such as caches.
This value cannot be changed while the virtual machine is active. The first item in the Dynamic Memory section enables the feature for the guest. Remember that Dynamic Memory also requires that the guest have Integration Services installed and functional or the virtual machine will always be set at its Startup Memory value.
The first option in this section is for the Minimum RAM value. There is no guarantee that a virtual machine can actually be reduced to this amount of memory.
The value can be lowered, but not raised, while the guest is online. The second option is Maximum RAM , which sets the ceiling for the amount of memory that can be allocated to a guest. As with the minimum, there is no guarantee that this amount can be allocated to a guest.
The maximum setting is 1 terabyte, which can be specified even if it exceeds the amount of physical RAM installed in the host. The value can be raised, but not lowered, while the guest is online.
The third and final option in this section is Memory buffer. This specifies the amount of memory that Hyper-V is to attempt to keep in reserve for increases to Dynamic Memory allocation. The indicated ten percent is a sliding value. It is calculated based on the amount of memory currently assigned to the guest. A guest using 1 gigabyte will have a megabyte reserve. The same virtual machine at 2 gigabytes will have a megabyte reserve.
The purpose of the reserve is to accelerate the allocation of additional memory to satisfy guest requests. If total host memory capacity becomes low, these reserves may be sacrificed. The last section of this dialog page is Memory weight. It contains only a slider control which allows you to set the memory assignment priority of the virtual machine.
This is intended only to aid Hyper-V in resolving allocation when there is contention. Usually, this is at host startup. Several virtual machines may be starting at the same time, but there may not be enough memory for all of them. Virtual machines with a higher memory weight will be turned on first. If memory is freed up later for example, through the use of Dynamic Memory , then virtual machines with a lower priority will be activated.
This slider also establishes the priority order for Dynamic Memory allocation. If you click this, it will expand to display two sub-tabs that contain further options for the processor. Physical CPU resources are shared among all virtual machines.
The number that you assign here sets the maximum number of threads that the virtual machine can schedule for processing simultaneously.
They will be run on the next physical core that Hyper-V makes available. The next option is Virtual machine reserve percentage. This setting allows you to control a minimum amount of physical CPU that will always be available to this virtual machine. As you adjust it, notice that the Percent of total system resources indicator automatically adjusts to match. The effect of this setting depends upon how many physical cores are in the host machine and how many virtual CPUs you have assigned to the virtual machine.
The calculation is:.
The total reserve for all virtual machines cannot exceed percent. This setting can be modified for a guest that is currently turned on. The virtual machine limit is the reverse of the reserve. It sets a cap on CPU utilization by the virtual machine. The same calculation is used for the limit as for the reserve.
As with the reserve, the limit can be changed for an active guest. The final option on this page is Relative weight. You use this to adjust the priority in which virtual machines are assigned compute resources under contention. Guests with a higher weight will be given priority. Multiple guests can use the same setting. The weight can be increased or decreased while the virtual machine is turned on.
In R2, only a single setting remains on the processor compatibility tab.
This does not allow migrations between processors from different manufacturers. The concept itself will be explored more thoroughly in a later article. The NUMA-related settings are found on this sub-tab. The second section, NUMA topology , is where you can make changes.
Hyper-V cascades NUMA down from the host to make the topology visible to the guest and will select appropriate defaults.
The final control on this page is Use Hardware Topology. This button allows Hyper-V Manager to detect the physical NUMA layout and apply it to the guest in a method that it determines to be optimal. Be aware that this may not return the guest to its default settings.
Virtual hard disk controllers come in two types: Use them to attach hard disks and DVD drives to the virtual machine. Selecting the controller gives you the opportunity to add a new drive. These drives can be virtual or physical.
At the top, choose the controller and controller position that you wish the drive to be attached to. You can select a virtual hard disk file or a physical disk. This portion provides much more control than simply selecting a virtual hard disk. Upon finalizing the creation, the new disk will be automatically attached at the designated location.
It initiates a wizard that guides you through the possible changes. The options are:. The Inspect button presents a small dialog with details about the file that constitutes the virtual hard disk.
For dynamically expanding disks, the actual consumed space and its upper limit will be displayed. For differencing disks, the parent will be displayed. Use the Browse button to direct this disk to use a different VHD or VHDX file than the one that is currently selected or to select the initial file for a new disk. However, if you have need of such a disk, use this radio button to attach it to your virtual machine. The disk that you use can be a physical disk local to the host or a LUN on remotely-attached storage.
It must be offline before you can use it. If the Physical hard disk radio button is disabled, Hyper-V Manager does not detect any eligible storage. Detected disks will be displayed by their local LUN information:. Once attached to the virtual machine, the disk or LUN cannot be used for any other purpose. The virtual machine will take control of the entire disk or LUN, including any partitions that it may contain.
The last control on this page is the Remove button. If it is a virtual hard disk, the file is left intact but the virtual machine is removed as an owner. If it is a physical disk, control is reverted to the management operating system and the disk is left in its original offline state.
You can remove a SCSI disk from a virtual machine while it is online, but the guest must be offline to remove a disk from the IDE chain.
As with hard drives, the DVD drives that you attach to a virtual machine can be virtual or physical. The media used for a DVD drive can be changed at any time whether the guest is running or not. The first portion of this dialog page is exactly like that for hard drives: Following that is also a Media section, but there are different options than for hard disks:. As with hard disks, the last option on this tab is Remove. This will remove the drive from the virtual machine entirely.
As with the Processor tab, the Network Adapter tab has a plus sign icon next to it that, when clicked, will expand to show two additional sub-tabs: Hardware Acceleration and Advanced Features. As before, exploration will start on the primary tab.
This is the default name for the virtual adapter, and the only one that is possible to assign using the GUI. The name can be changed using PowerShell, so you might need to identify that an object is a virtual adapter by its icon, not the text.
A virtual adapter can only be added or removed while the virtual machine is off, but most of the settings can be changed while the guest is online. The first item on this page is the Virtual switch selector. A Not connected option is always available, which is the virtual equivalent of unplugging the adapter entirely. All virtual switches on the host are displayed in the drop-down and the virtual machine can be relocated to any of them at any time.
This follows the The first option is this group is a checkbox, Enable virtual LAN identification , which enables tagging. If this is not checked, the virtual adapter receives and transmits only untagged frames.
Running Windows Server under Hyper-V | IT Pro
If the box is checked, you must then specify a number in the text box between 1 and The virtual adapter will receive and transmit frames with that tag. The next section, Bandwidth Management , allows you to shape the traffic characteristics of this virtual adapter.
While the GUI text does not change, the exact functionality of this screen depends on the virtual switch mode. If the virtual switch does not have bandwidth management enabled, then these boxes have no effect. The maximum will continue to work as indicated by the text. You must use PowerShell to adjust the minimum weight. The final option on this tab is Remove. It permanently deletes the virtual adapter from the virtual machine.
If you recreate it, the guest operating system will treat it like a new adapter. The first virtual adapter sub-tab contains hardware acceleration settings.
These are features of the physical network adapter that can enhance the performance of your virtual adapter. The first is Enable virtual machine queue. Virtual machine queue VMQ is an offloading technology that allows incoming traffic processing to be spread across multiple physical CPUs. This dialog entry allows you to prevent the specified virtual adapter from registering for a queue by unchecking the box. The second section is related to IPsec task offloading.
As the text explains, the text box allows you to specify the maximum number of unique security associations the virtual adapter can offload. Any above this number will be processed inside the virtual machine. The technology itself will be discussed in the article on virtual networking. Checking this box causes the virtual adapter to attempt to use a virtual function on an SR-IOV-capable adapter that its virtual switch is assigned to.
The Advanced Features sub-tab contains the remaining settings for a virtual adapter. To start, you can configure a static MAC address for a virtual adapter if necessary. Also in this section is a checkbox to Enable MAC address spoofing.
The second section allows you to enable DHCP guard. This prevents the virtual adapter from receiving any DHCP discover or request packets, effectively preventing its operating system from acting as a DHCP server. The third section performs the same function for routing requests. Configuring Virtual Networks. What are the uses for different types of virtual networks? Hyper-V Networking Best Practices. Best Regards,. Vincent Hu. I was finally able to use the VM's that Microsoft pre-configured and this virtual network came up, although I hadn't created it in Hyper-V.
Now, even though this new virtual network "seems" no different than an Internal virtual network that I was trying to make, there must be something else about it that is different as the two VM's provided by Microsoft both part of a domain will not see each other unless that particular virtual network with the "VMBus Network Adapter" is used. So, that problem is solved. As for the loss of Internet connectivity on the pjysical NIC when an external network is created.
The problem is that both MAC addresses will be seen on the wire and routing will not work properly. The physical will get all the packets and it will not forward them to the vNIC. Take a look over here: Go down to the one about nerworking. It might help you understand what is happening.
When you create a new VM on Hyper-V, it will create a network adapter for the VM by default, this network adapter is a synthetic network adapter this network adapter will use VMBus to communicate. With this network adapter, you need to install Integration Services before it works. Note that this one will not works under 64bit of Windows Server For more information, you can refer to: None of this addresses my question.
I understand about having a "Network Adapter". This is what Microsoft's documentation says and shows a screen shot of what they show is not a regular "Network Adapter". I'd say it would be safe to assume that the documentation was written using either a Hyper-V beta release or an internal MS version never made public.
I consider the documentation to be flawed in this matter. One last question though. Why is this and how can I give a VM Internet access via a physical adapter? If you have only one adapter on your Hyper-V host, you can share this adapter with the host by checking the "allow management operating system to share this adapter" box.
It is however recommended best practice to have at least two physical adapters and dedicate them to host and VM traffic. You create an external network and attach it to the physical adapter. Then you connect the network adapter in your VM settings to the external network you just created. For more information on this, you can check out the links provided by Vincent and Kristian Nese's blog on basic networking in Hyper-V:. I don't understand what the problem is here. This is all as expected and as outlined in: Additionally, when I created the new virtual network, the selction to allow the management operating system to share the network adapter is already checked and I left it that way.
Even more, when I look at the physical adapter settings in the host OS, the new virtual adapter does indicate it has Internet access and the physcial NIC it is bound to no longer does. This is also not unexpected as the physical NIC will get access via the virtual one. It all seems like it's supposed to be.
After you add the External Virtual Network there are actually three MAC addresses that will be visible coming from that server. Another problem is that there is a switch or router that is limiting to one MAC address per port. I have not seen this in the forums for a long time, but it used to be a big problem a while back. The physical NIC is bound to the virtual network.
It is this new virtual nic that should be getting an IP address via some DHCP service on your network - or manually assigned by you.
